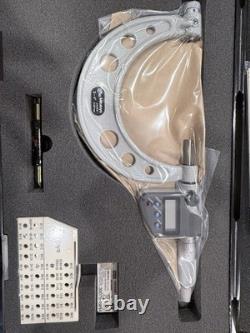

Mitutoyo Digital Screw Thread Micrometer 3-4 / 76.2-101.6mm. This Mitutoyo digital screw thread micrometer measures the pitch diameter of screw threads and has ratchet stop for constant force.

60 degree or 55 degree interchangeable V-anvil and conical spindle are optional. Contact Microscope World for information on having this instrument calibrated. Range = 3-4 / 76.2-101.6mm.

Accuracy = +/- 0.00025. Resolution = 0.00005 / 0.001mm. Spindle feed error = 0.00012. Data Output = Yes, use water resistant SPC cable with data switch.

Battery = SR44, battery life approximately 1 year under normal use. Functions = zero/ABS, data hold, data output, function lock, Preset, low voltage alarm, inch/mm conversion, counting value composition error alarm. Case = includes fitted case.

Mitutoyo Part # = 326-354-30.
